Steam Check Valve

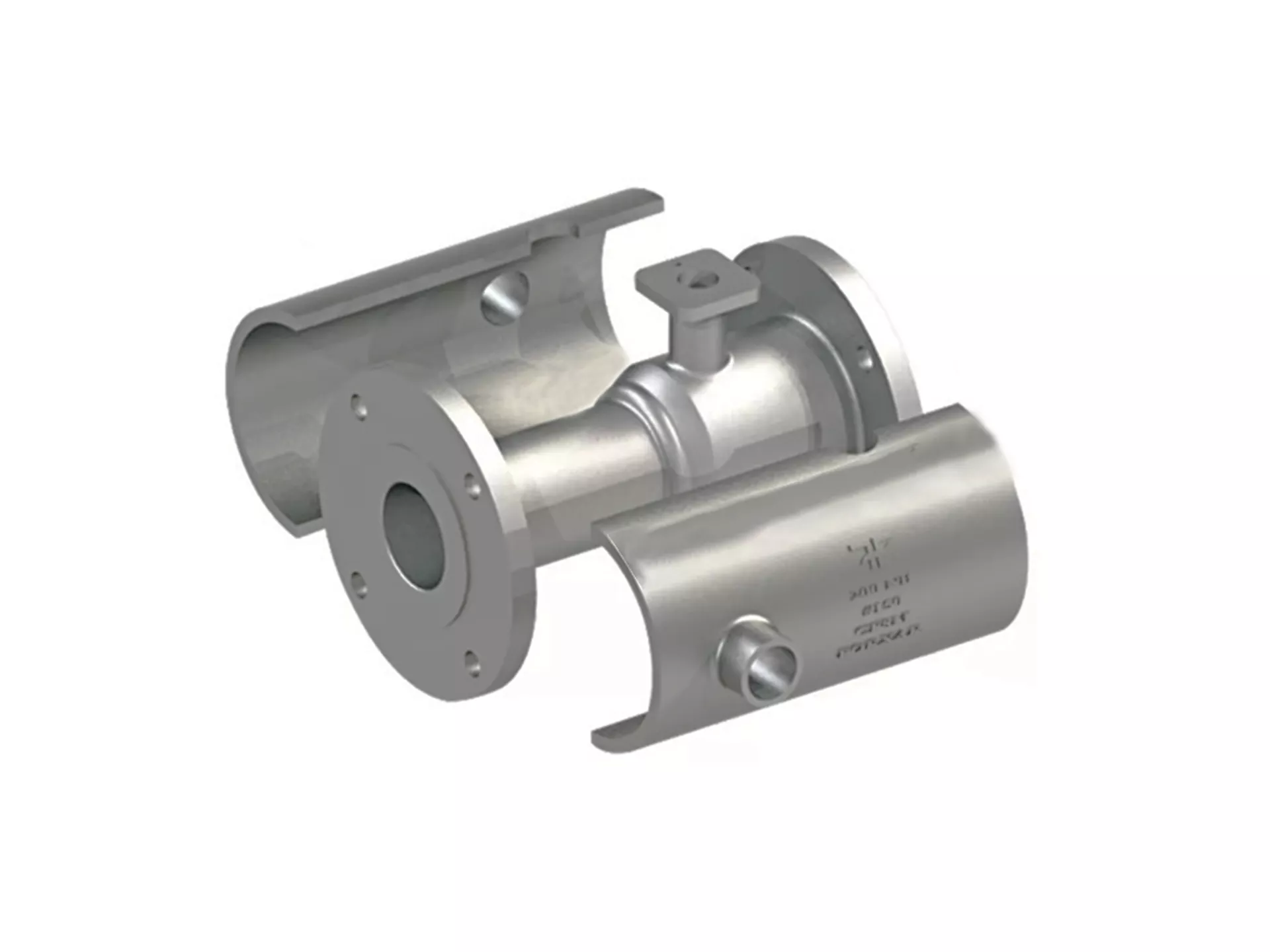

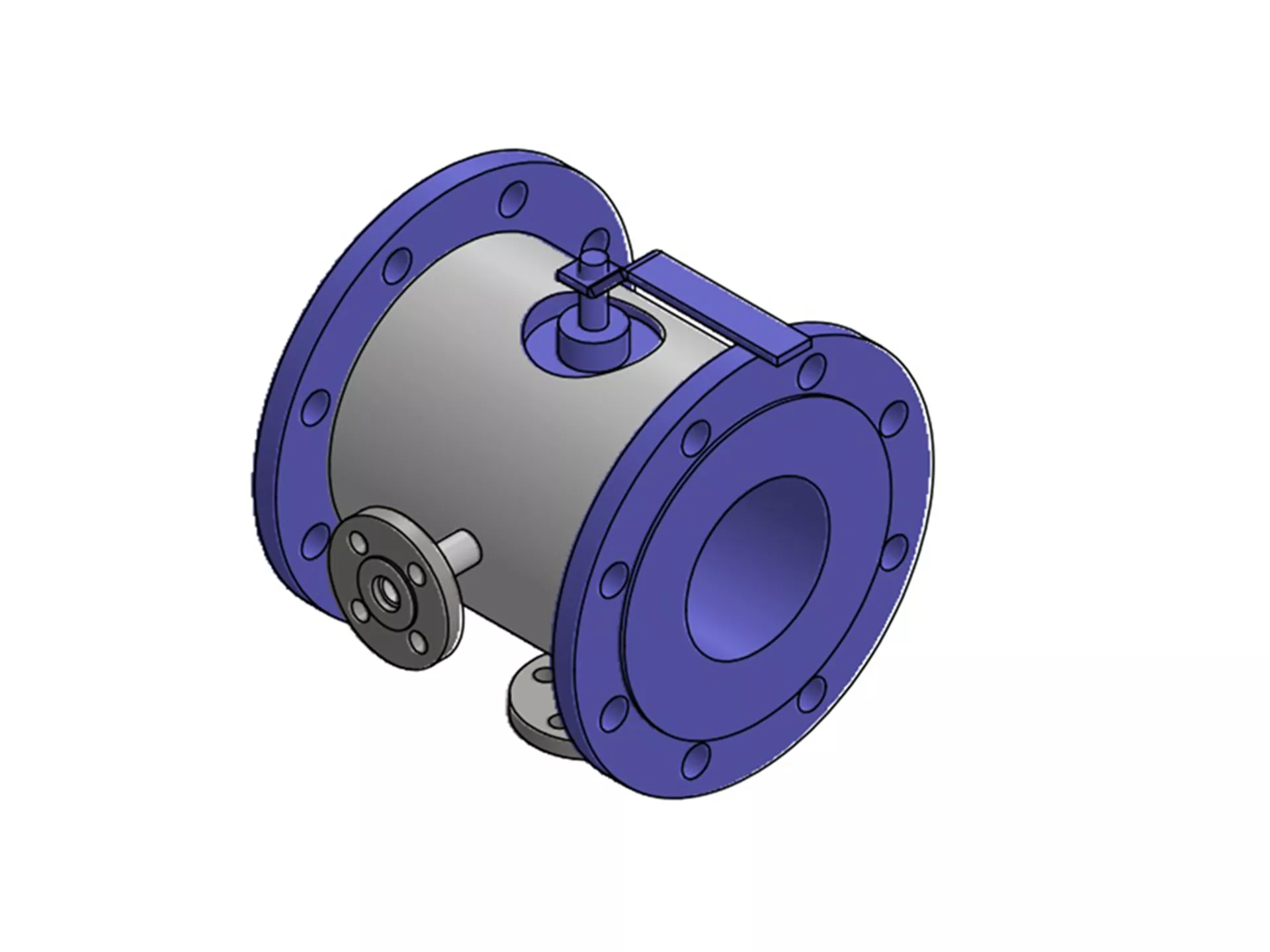

In these valves with Flanged Connection, the jacket covers the body from one flange to the other flange. The jacket is added by connecting large size flanges to the body. For example, connection flanges for DN50 valves are made of DN80. In this way, the bolt connections can be easily installed without hitting the jacket.

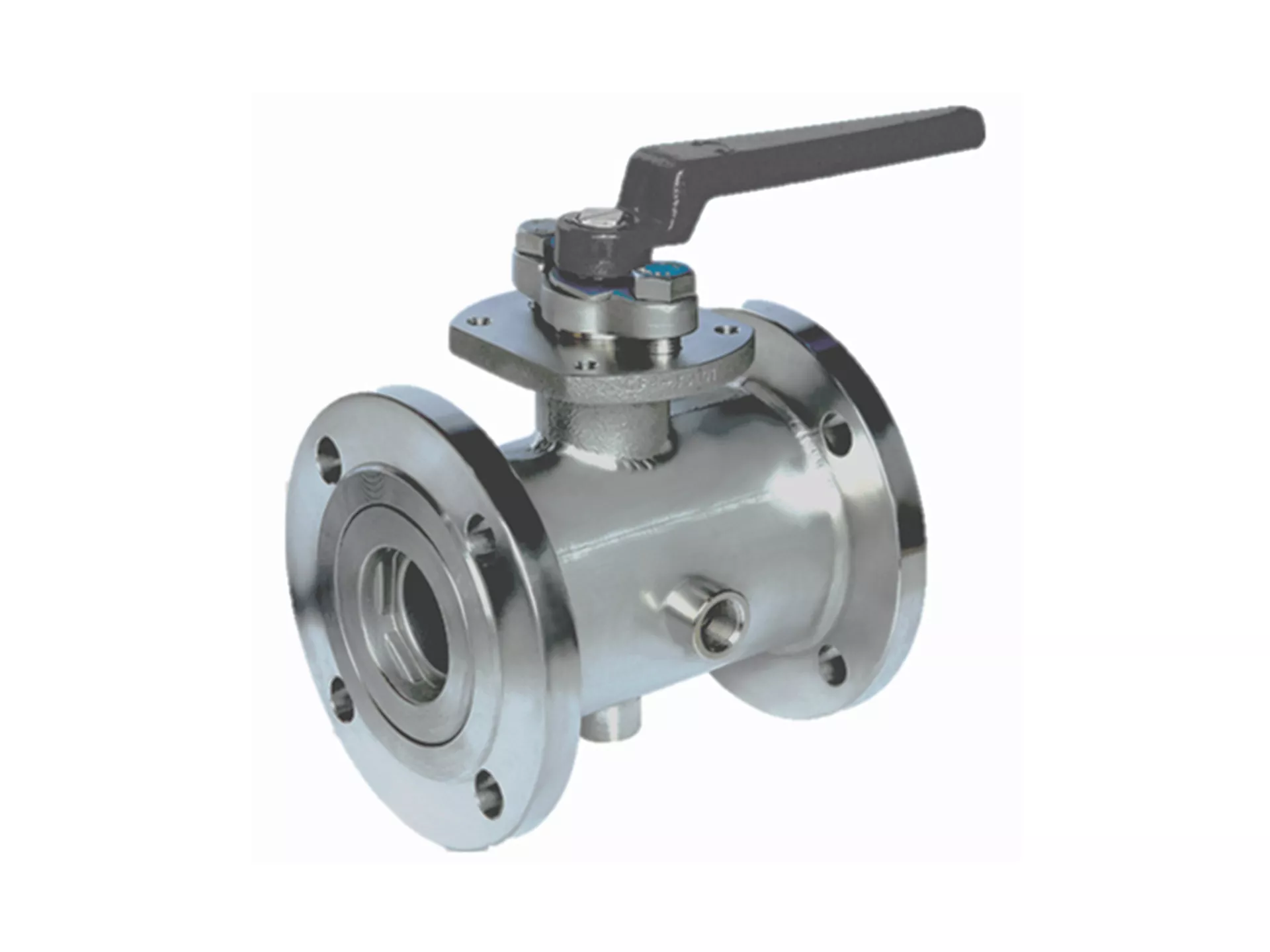

Jackets provide heating of the process medium to the valve surface to prevent the flow medium within the valve from crystallizing or freezing. Jacketed Valve (Heating Jacketed Valve) has very good design to assist high temperature steam or oil flow over the valve ball and body parts to keep the fluid liquid. This is especially true for media such as bitumen and liquid sulfur.

Flow Control Systems are generally operated with a manual lever or gear unit, depending on the valve size. Mektron Makina also offers valves with Pneumatic or Electric actuators operated for automation.

Generally, standard Jacketed Valves are manufactured from carbon steel and different types of stainless steel materials. Flow Control System Jacketed P.T.F.E. Seat Valves provide Zero Leakage, Tight Closing and Low Torque with easy trouble-free operation at temperatures between -20° C and +220° C.

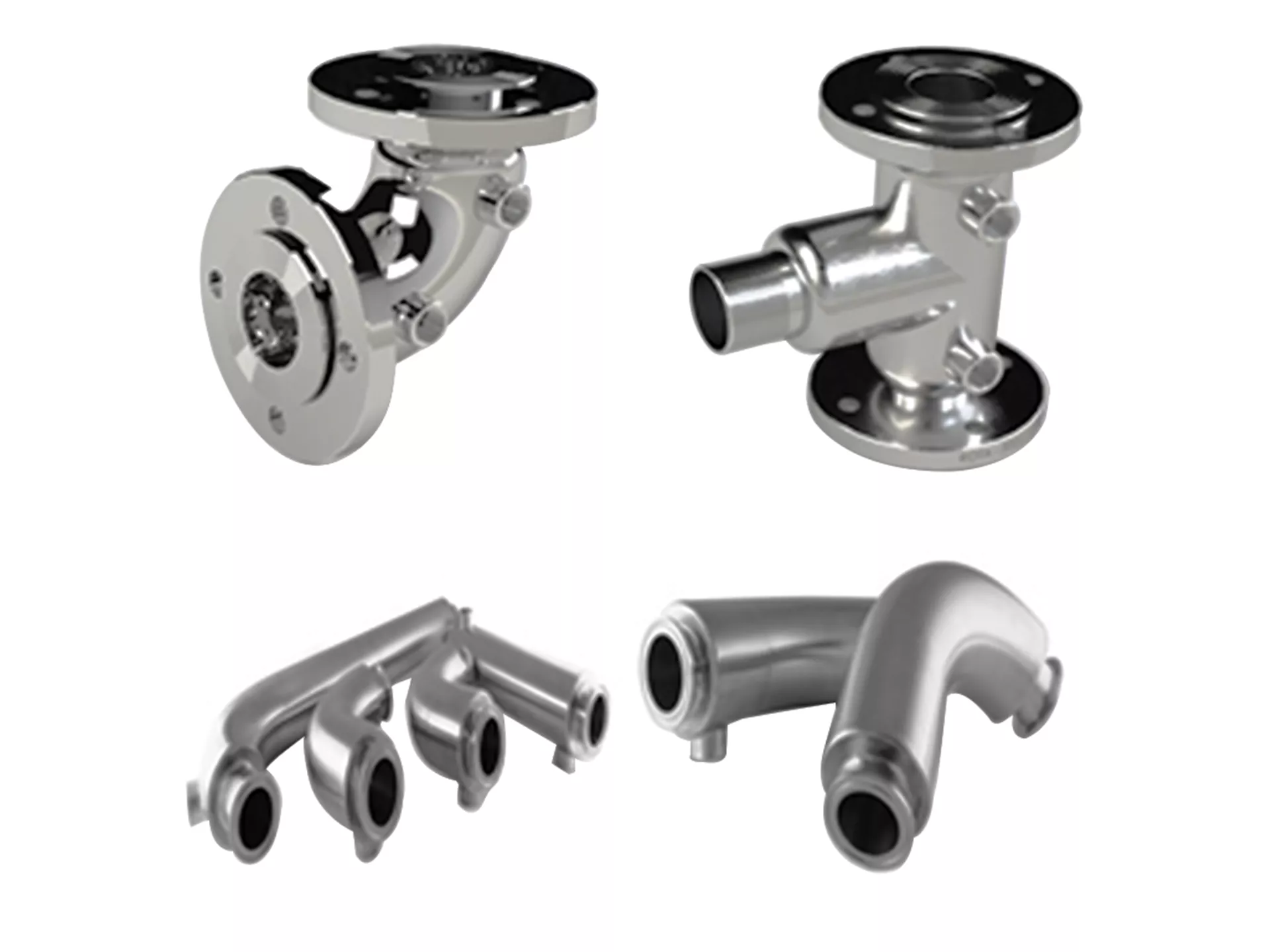

Steam Jacketed Pipe, Elbow and Tee
In these products, it is the process of passing steam through the jacket to prevent the fluid in the pipe and line from freezing. Equipment such as pipes, elbows and tees are specially prepared to prevent the fluid from freezing.

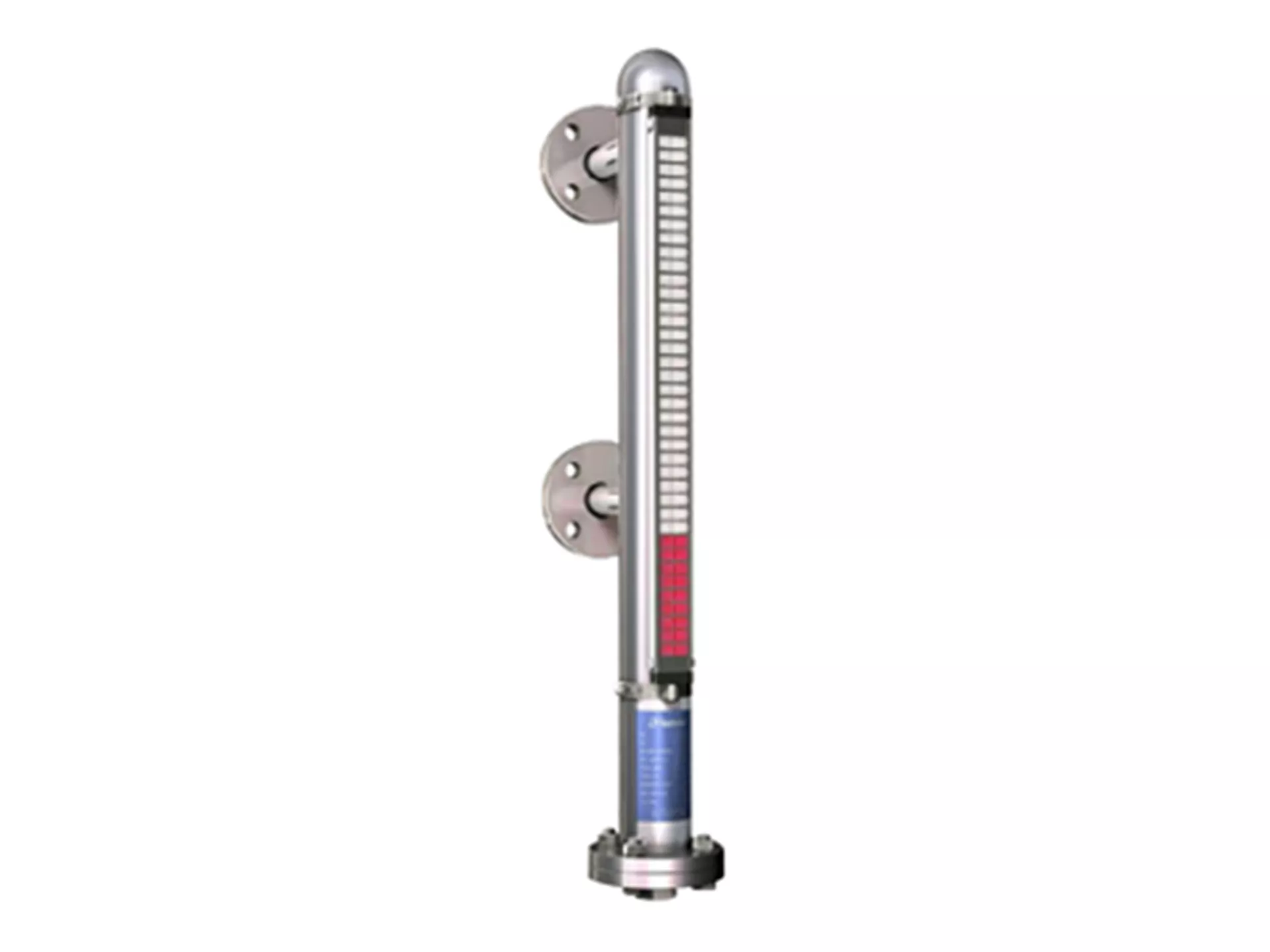

Boiler Type Magnetic Level Indicator
Mektron  magnetic level indicator device is used for continuous measurement, monitoring and display of liquid level. The level change in the tank changes the level of the liquid in the bypass tube at the same rate, according to the principle of combined vessels. In this way, the magnetic float inside the level indicator moves and affects the magnetic flaps on the outer surface of the bypass tube and rotates 180° C around its own axis. allows it to rotate. As the liquid level increases, the white flaps turn red, and as the liquid level decreases, the red flaps turn white. The superior magnetic design of Mektron level indicator devices enables them to operate safely even under difficult conditions such as rapidly changing liquid levels and environments with intense vibration.

• It is manufactured according to the desired size, temperature and pressure.
• Pressure (Pmax): PN16 / PN25 - 40
• Temperature (Tmax): 200 / 300 °C (Optional)
• Connection Material: Carbon Steel St 37.2 Stainless Steel (Optional)
• Connection Types: Threaded G1/2” - 3/4” - 1” Flange DN15 - DN20 - DN25
• Float: AISI 316Ti - Ø52 mm
• Pipe: AISI 304 (AISI 316 Op.) - Ø60.3 mm
• Display Profile: Aluminum
• Flaps: Glass Fiber Heat Resistant Plastic
